TryComp 18.5 kW Rotary Screw Air Compressor
Robust TryComp 18.5 kW screw compressor based on proven AirHorse designs, ideal for general industry.
Overview
Robust TryComp 18.5 kW screw compressor based on proven AirHorse designs, ideal for general industry. Suited to engineering shops, light manufacturing, depots and OEM installations.
Assembled to match common IR / GA replacement duties. Supplied and supported across South Africa and selected African countries.
| Parameter | Unit | Value |
|---|---|---|
| Motor Power | kW | 18.5 |
| Working Pressure | bar | 7.5 – 8 bar |
| Free Air Delivery | m³/min (approx.) | 3.0 |
| Power Supply | V / Ph / Hz | 400 V / 3 Ph / 50 Hz |
| Drive Type | – | Direct or belt drive depending on configuration |
| Air-End | – | AirHorse screw air-end |
| Noise Level | dB(A) | typically 68–74 dB(A) |
| Cooling | – | Air-cooled, forced ventilation |
| Installation | – | Indoor, level floor with adequate ventilation |
Key Features
- Efficient screw air-end for stable pressure and continuous duty
- Optimised for industrial use with long service intervals
- Compact footprint suitable for compressor rooms or workshop corners
- Easy access panels for servicing and inspections
Typical Applications
- General industrial air supply for tools and machinery
- Automotive workshops, tyre shops and panel beaters
- Manufacturing, packaging lines and process equipment
- Logistics hubs, warehouses and depots
Get a Tailored Quote
Guide Price: From R62,000 excl. VAT — Final pricing based on configuration, accessories and installation.
We size each compressor around your real air demand, hours of use and future expansion plans. Provide details of your existing compressor (if any) and processes, and our team will propose the best configuration.
Request a Quote on This ModelPricing is provided on request based on scope, installation and location.
Technical Specifications
| Motor Power | 18.5 kW |
|---|---|
| Working Pressure | 7.5 – 8 bar |
| Free Air Delivery | 3 m³/min / 106 cfm / 3000 l/min |
| Drive Type | Belt drive rotary screw |
| Duty Cycle | 100% continuous |
| Electrical Supply | 380V / 400V, 3-phase, 50Hz |
| Starting Method | Star-delta (standard) | VSD available |
| Typical Applications | Workshops, light manufacturing, tyre centres and medium-demand plant air |
Note: Capacity figures are indicative and may vary by pressure setting, voltage, air-end configuration and final model selection. Titan Emporium will confirm the exact datasheet before order placement.
Is the TryComp 18.5 kW the Right Size for You?
The 18.5 kW model is a heavy-duty industrial machine built for continuous operation in demanding environments. This size range is commonly specified for plant air supply, large processing operations, and mining support applications.
As a general rule, an 18.5 kW screw compressor delivers approximately 3000 litres per minute of free air at 10 bar. To size correctly, add up the total air consumption of all tools and equipment that will run simultaneously, add 20-25% headroom for system losses and future expansion, and match that figure to the compressor's free air delivery.
Not sure if this is the right size? Request a free sizing consultation from our technical team — we will review your application and confirm the optimal specification.
What is Included with Your TryComp 18.5 kW Compressor?
- Rotary screw airend (factory-assembled and tested)
- Integrated air/oil separator vessel
- Electric motor (IE3 efficiency class)
- Belt drive transmission
- Electronic controller with fault display
- Air filter, oil filter, and oil separator element
- Compressor oil (initial fill)
- Operations and maintenance manual
- 12-month warranty on components, with air-end warranty confirmed by brand and configuration
Optional accessories available: refrigerated air dryer, coalescing filters, air receiver tank (200L-5000L), condensate management system, and installation kit. Ask about a complete package quote.
Service and Maintenance for Your TryComp 18.5 kW
Titan Emporium offers full service and maintenance support for all TryComp compressors. Our service team covers Johannesburg, Pretoria, Durban, Cape Town, and surrounding regions. We stock genuine service parts including oil filters, air filters, oil separator elements, and belts.
Available service options:
- Scheduled maintenance — 2,000-hour / 4,000-hour service intervals
- SLA maintenance contracts — fixed monthly cost, priority response
- Breakdown repair — nationwide emergency service capability
- Annual service report — documented maintenance history for each unit

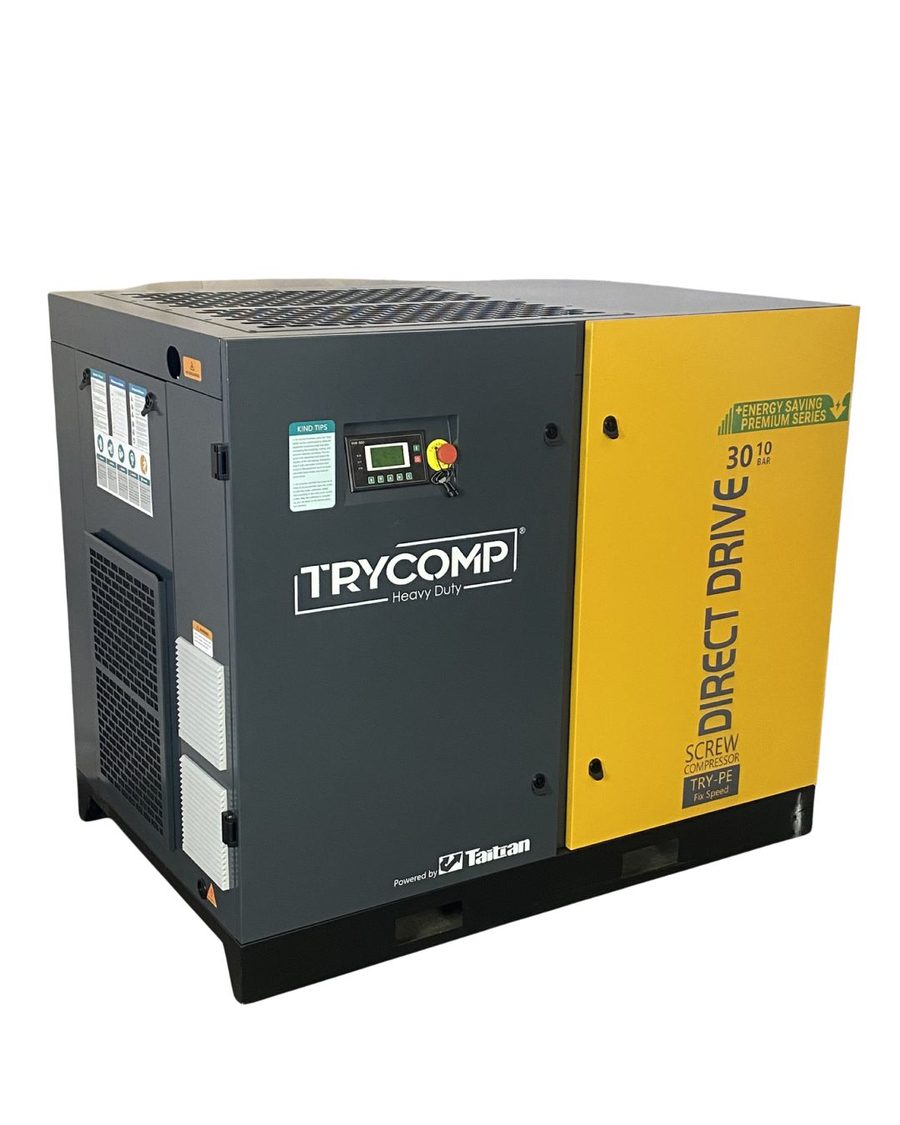

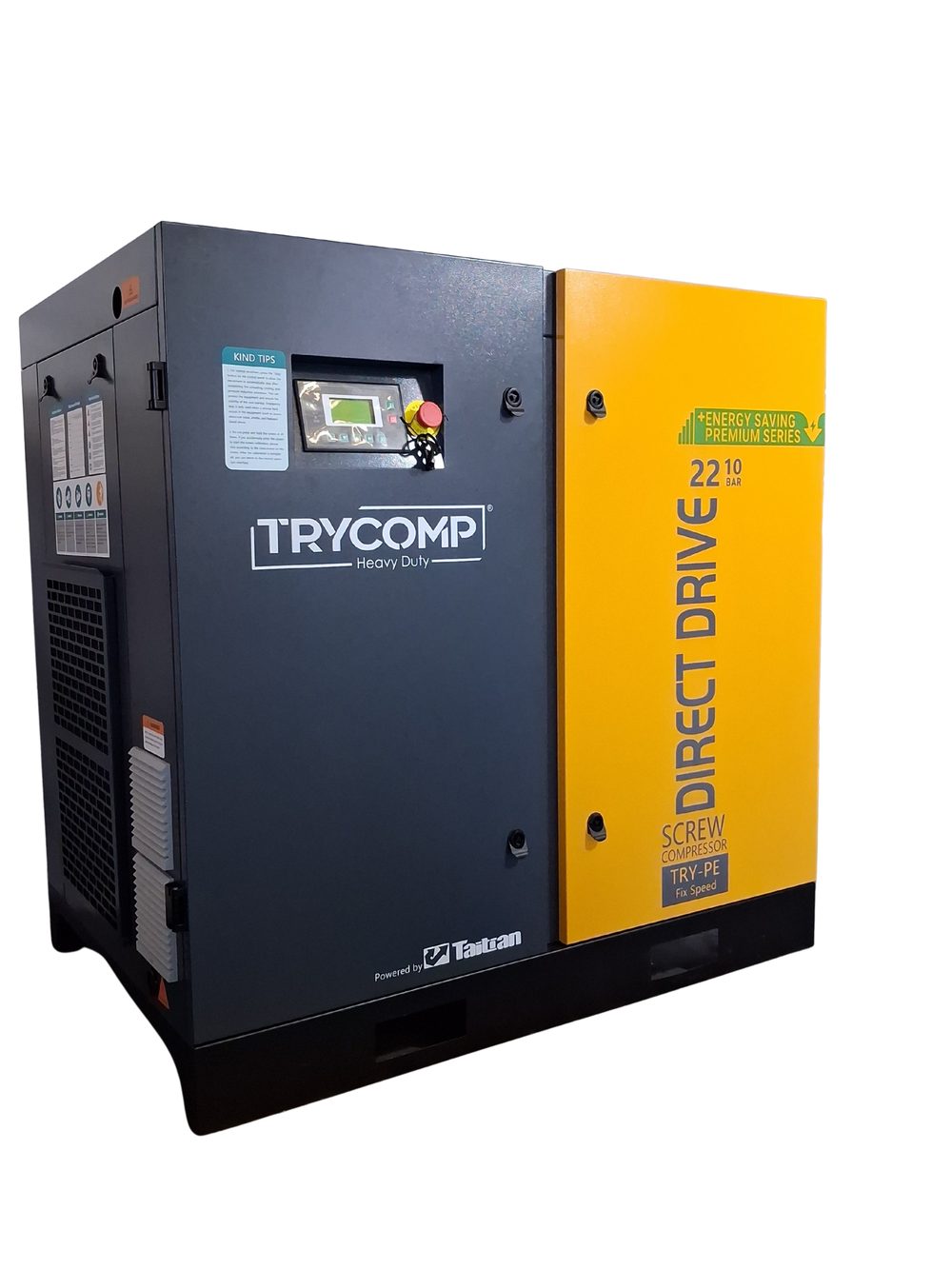

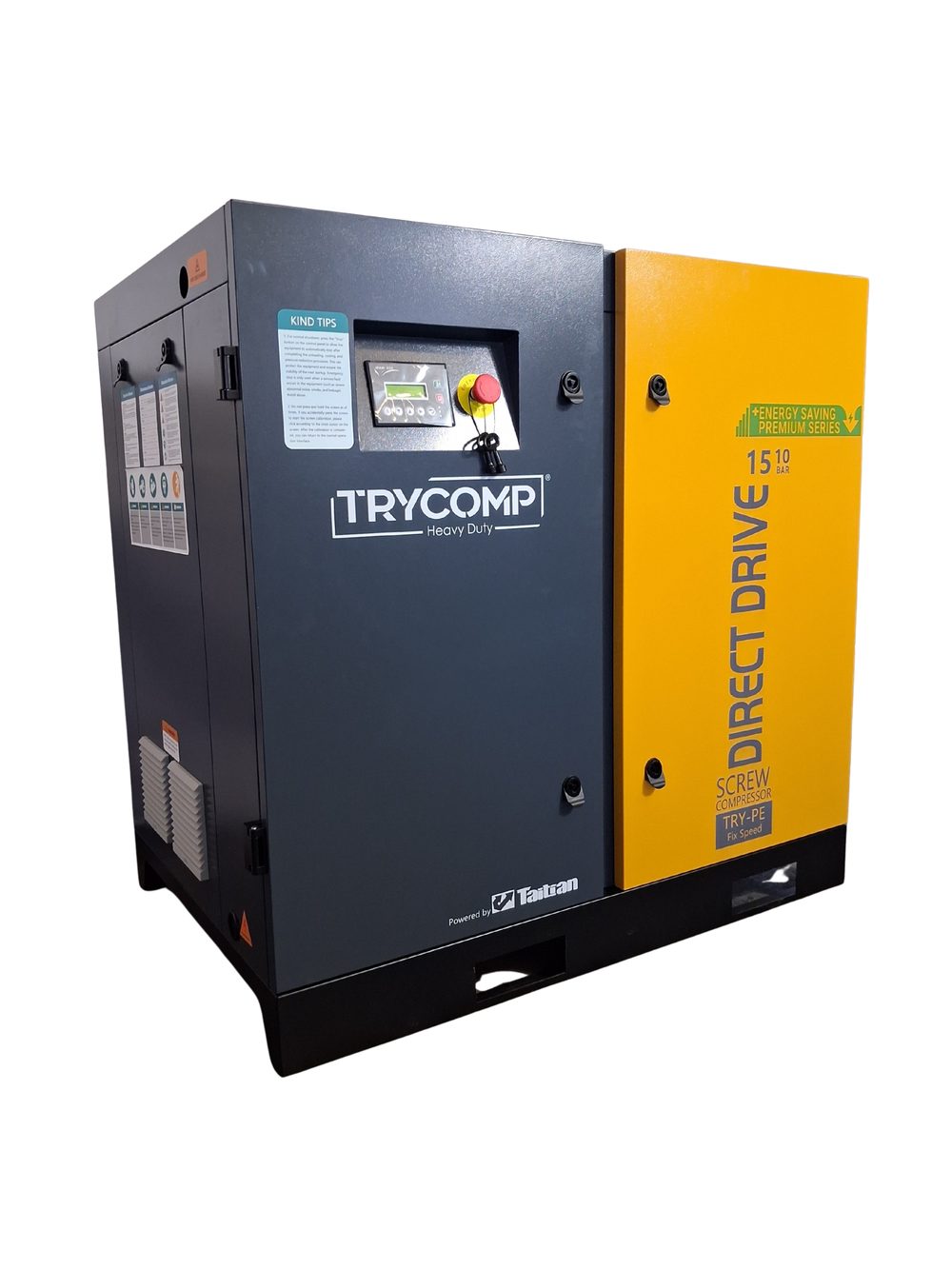

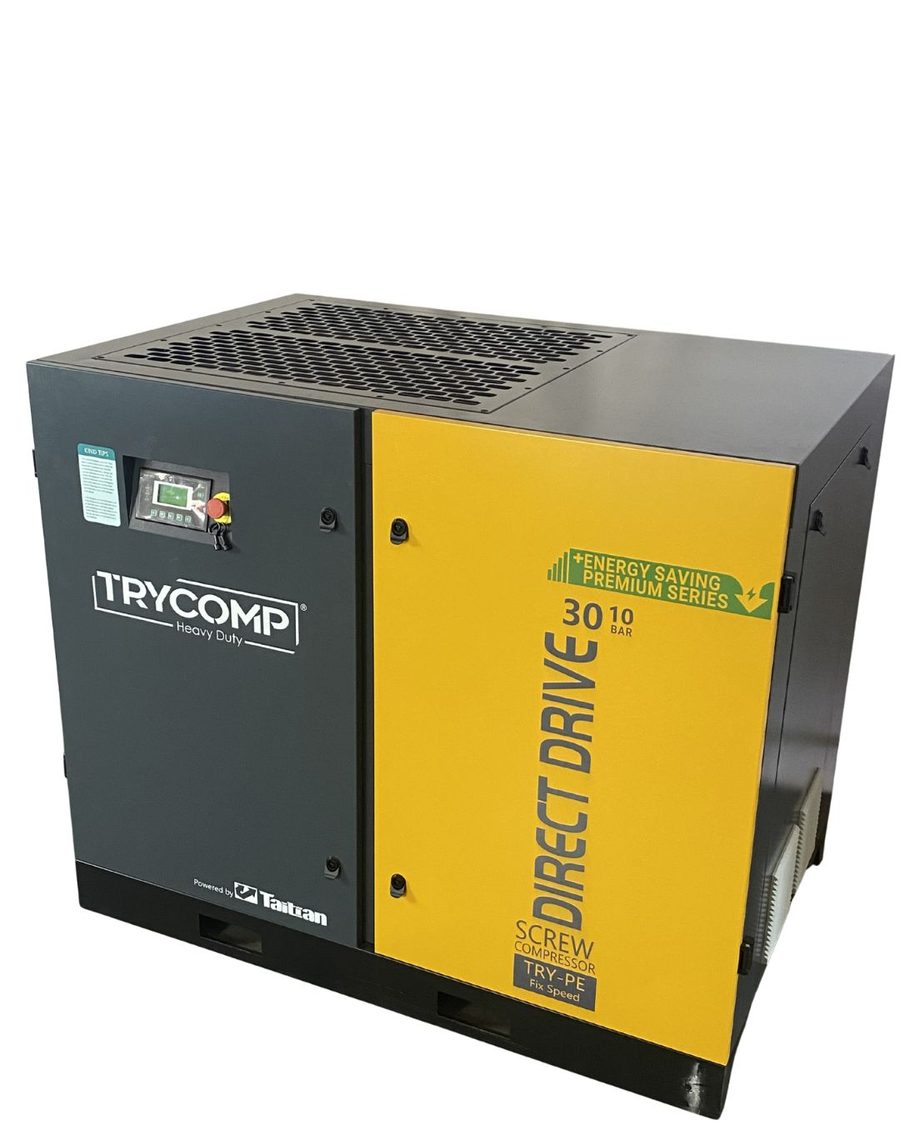

Additional TryComp Product Photos
More visual examples of TryComp rotary screw compressor cabinets for customer quotations, product confidence and comparison pages.
